The Shapet Superior Three Phase Induction Melting Machine is a heavy-duty, high-performance melting solution designed for medium to large-scale metal melting operations. Powered by a three-phase electrical system, this machine delivers faster melting, higher efficiency, and stable continuous performance, making it ideal for jewellery manufacturing units, refineries, casting workshops, and industrial foundries.

Engineered with advanced induction technology, the Superior series ensures uniform heating, reduced metal loss, and precise temperature control, even during extended working hours. Its robust construction and industrial-grade components make it suitable for daily production use.
Power Supplier Three Phase
Voltage 415 V/Ac
Absorbed Power 7 - 10 Kw
Capacity of Crucible 2Kg, 4Kg, 5Kg
Maximum Temperature 1150
Melting Time 14-15 Minutes
Temperature Measurement K Type
Cooling Water Temperature 30
Water Pressure 3 Bar
Maximum Water Flow 3 Lit/Min

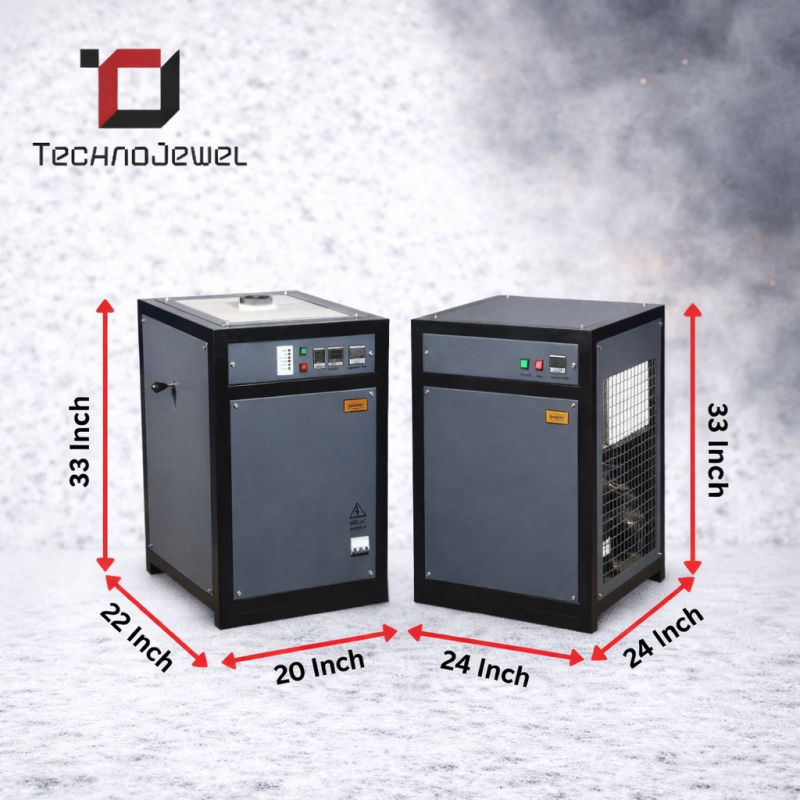

Dimension (mm) L x B x H
Furnace Unit 508 X 559 X 838
Chilling Unit 610 X 610 X 838
Weight (kg - Approx)
Furnace Unit 80net
Chilling Unit 100net
Three-Phase Induction Technology for powerful and stable melting
Fast & Uniform Heating with minimal oxidation

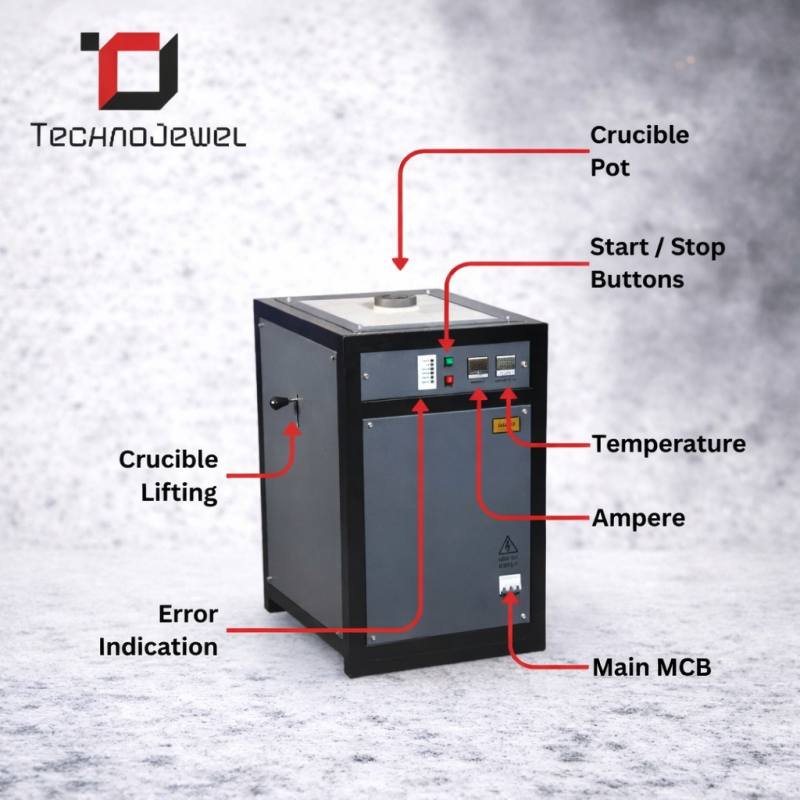

Digital Temperature Control & Display for precise operation
Energy-Efficient Design with optimized power consumption
Heavy-Duty Construction for long service life
Compatible with Graphite & Ceramic Crucibles
Enhanced Safety Protections for industrial use
Higher output compared to single-phase machines
Reduced melting time for large batches
Consistent performance under continuous load
Trusted Shapet build quality and service support
